cdrel_config Struct Reference

#include <cdrel.h>

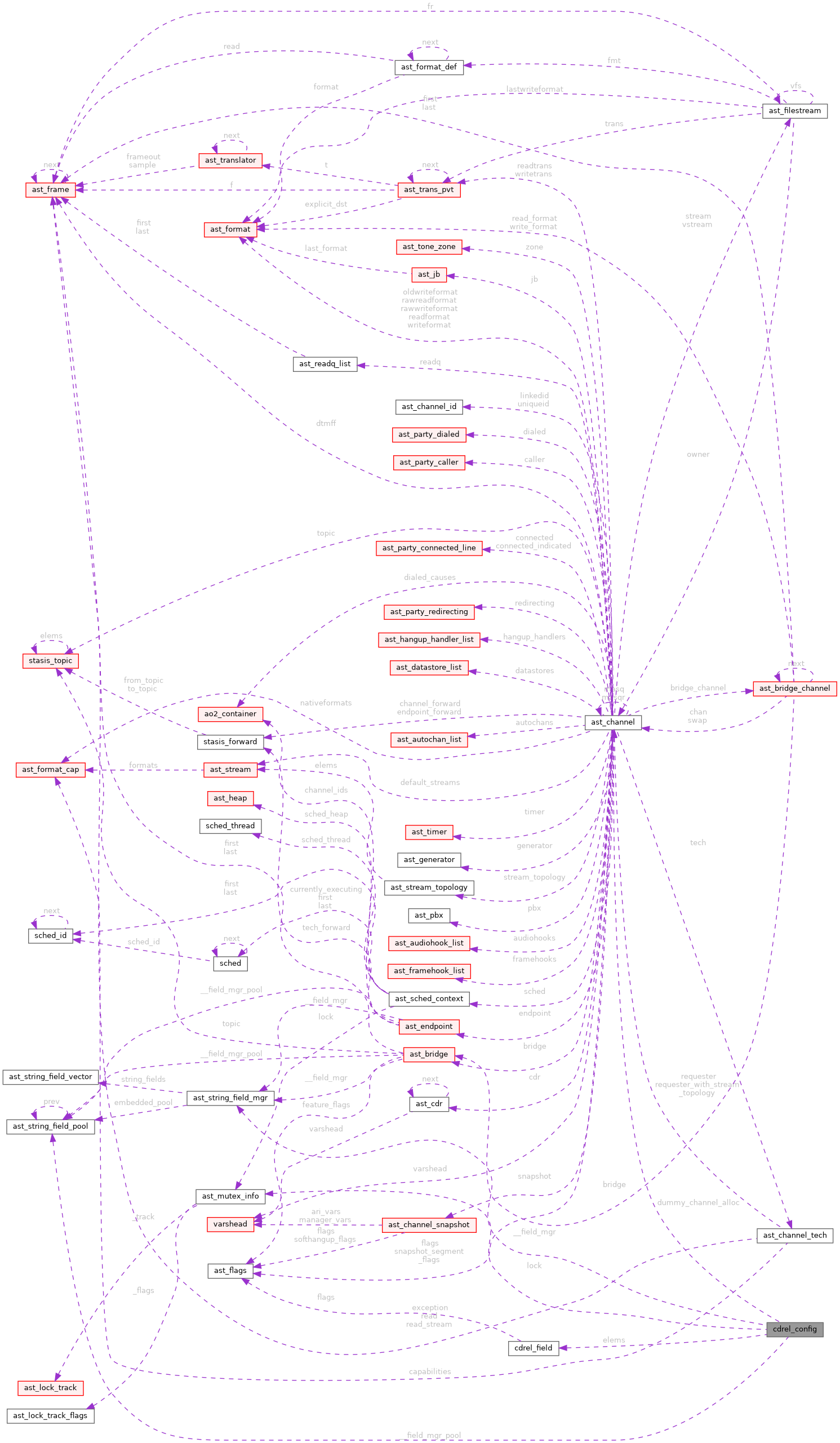

Collaboration diagram for cdrel_config:

Data Fields
struct ast_string_field_mgr	__field_mgr
struct ast_string_field_pool *	__field_mgr_pool
enum cdrel_backend_type	backend_type
int	busy_timeout
const ast_string_field	config_filename
enum cdrel_config_type	config_type
sqlite3 *	db
const ast_string_field	db_columns
const ast_string_field	db_table
cdrel_dummy_channel_alloc	dummy_channel_alloc
struct {
size_t   current
struct cdrel_field **   elems
size_t   max
}	fields
enum cdrel_text_format_type	format_type
sqlite3_stmt *	insert
ast_mutex_t	lock
const ast_string_field	output_filename
char	quote [2]
char	quote_escape [2]
enum cdrel_quoting_method	quoting_method
enum cdrel_record_type	record_type
char	separator [2]
const ast_string_field	template

Detailed Description

Represents an output definition from a config file

Definition at line 281 of file cdrel.h.

Field Documentation

__field_mgr

struct ast_string_field_mgr __field_mgr

Definition at line 289 of file cdrel.h.

__field_mgr_pool

struct ast_string_field_pool* __field_mgr_pool

Definition at line 289 of file cdrel.h.

backend_type

enum cdrel_backend_type backend_type

Text file or database

Definition at line 294 of file cdrel.h.

busy_timeout

int busy_timeout

sqlite3 query timeout value

Definition at line 292 of file cdrel.h.

config_filename

const ast_string_field config_filename

Definition at line 289 of file cdrel.h.

config_type

enum cdrel_config_type config_type

Legacy or advanced

Definition at line 295 of file cdrel.h.

current

size_t current

Definition at line 301 of file cdrel.h.

db

sqlite3* db

sqlite3 database handle

Definition at line 290 of file cdrel.h.

db_columns

const ast_string_field db_columns

Definition at line 289 of file cdrel.h.

db_table

const ast_string_field db_table

Definition at line 289 of file cdrel.h.

dummy_channel_alloc

cdrel_dummy_channel_alloc dummy_channel_alloc

Legacy config types need a dummy channel

Definition at line 293 of file cdrel.h.

elems

struct cdrel_field* * elems

Definition at line 301 of file cdrel.h.

[struct]

struct { ... } fields

Vector of fields for this config

Referenced by load_text_file_advanced_config(), and load_text_file_legacy_config().

format_type

enum cdrel_text_format_type format_type

For text files, CSV or JSON

Definition at line 296 of file cdrel.h.

insert

sqlite3_stmt* insert

sqlite3 prepared statement for insert

Definition at line 291 of file cdrel.h.

lock

ast_mutex_t lock

Lock that serializes filesystem writes

Definition at line 302 of file cdrel.h.

max

size_t max

Definition at line 301 of file cdrel.h.

output_filename

const ast_string_field output_filename

Definition at line 289 of file cdrel.h.

Referenced by load_text_file_legacy_config().

quote

char quote[2]

For text files, the quote character

Definition at line 299 of file cdrel.h.

quote_escape

char quote_escape[2]

For text files, character to use to escape embedded quotes

Definition at line 300 of file cdrel.h.

quoting_method

enum cdrel_quoting_method quoting_method

When to quote

Definition at line 297 of file cdrel.h.

record_type

enum cdrel_record_type record_type

CDR or CEL Input configuration filename Output text file or database Input template List of columns for database backends Table name for database backends

Definition at line 282 of file cdrel.h.

Referenced by load_config_file(), load_text_file_advanced_config(), load_text_file_config_file(), load_text_file_legacy_config(), load_text_file_legacy_mappings(), register_backend(), and unregister_backend().

separator

char separator[2]

For text files, the field separator

Definition at line 298 of file cdrel.h.

template

const ast_string_field template

Definition at line 289 of file cdrel.h.

Referenced by Transform::render().

---

The documentation for this struct was generated from the following file:

• cdrel.h
