ari_websocket_requests.c File Reference

#include "asterisk.h"
#include "ari_websockets.h"
#include "asterisk/ari.h"
#include "asterisk/json.h"
#include "asterisk/stasis_app.h"

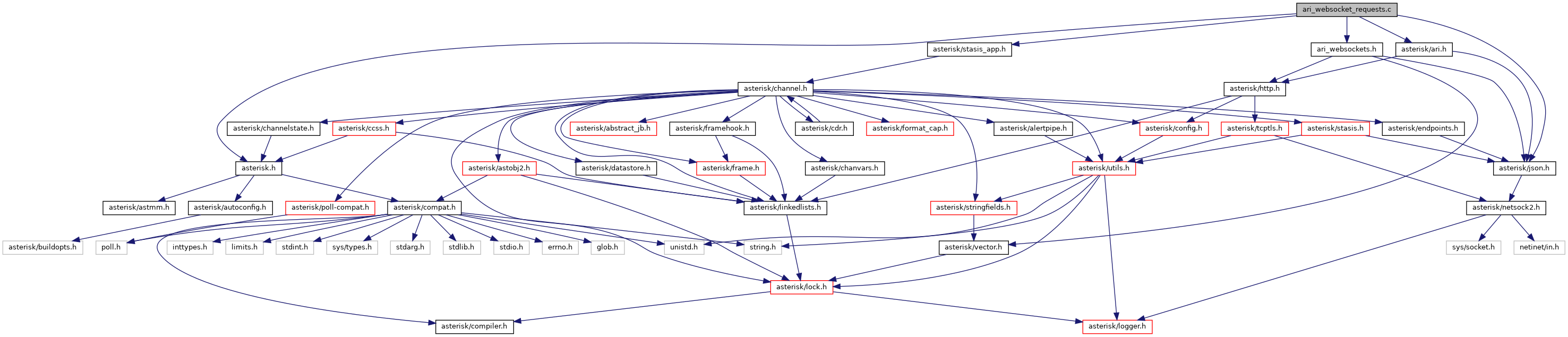

Include dependency graph for ari_websocket_requests.c:

Go to the source code of this file.

Data Structures
struct	rest_request_msg

Macros
#define	SET_RESPONSE_AND_EXIT(_reponse_code, _reponse_text, _reponse_msg, _remote_addr, _request, _request_msg)

Functions
int	ari_websocket_process_request (struct ari_ws_session *ari_ws_session, const char *remote_addr, struct ast_variable *upgrade_headers, const char *app_name, struct ast_json *request_msg)
static struct rest_request_msg *	parse_rest_request_msg (const char *remote_addr, struct ast_json *request_msg, struct ast_ari_response *response, int debug_app)
static void	request_destroy (struct rest_request_msg *request)
static void	send_rest_response (struct ari_ws_session *ari_ws_session, const char *remote_addr, const char *app_name, struct rest_request_msg *request, struct ast_ari_response *response, int debug_app)

Macro Definition Documentation

SET_RESPONSE_AND_EXIT

#define SET_RESPONSE_AND_EXIT	(		_reponse_code,
			_reponse_text,
			_reponse_msg,
			_remote_addr,
			_request,
			_request_msg
	)

Definition at line 54 of file ari_websocket_requests.c.

Function Documentation

ari_websocket_process_request()

int ari_websocket_process_request	(	struct ari_ws_session *	ari_ws_session,
		const char *	remote_addr,
		struct ast_variable *	upgrade_headers,
		const char *	app_name,
		struct ast_json *	request_msg
	)

Definition at line 261 of file ari_websocket_requests.c.

{
    int debug_app = stasis_app_get_debug_by_name(app_name);
    RAII_VAR(struct rest_request_msg *, request, NULL, request_destroy);
    struct ast_ari_response response = { .fd = -1, 0 };

    SCOPE_ENTER(3, "%s: New WebSocket Msg\n", remote_addr);

    if (TRACE_ATLEAST(3) || debug_app) {
        char *str = ast_json_dump_string_format(request_msg, AST_JSON_PRETTY);
        /* If we can't allocate a string, we can't respond to the client either. */
        if (!str) {
            SCOPE_EXIT_LOG_RTN_VALUE(-1, LOG_ERROR, "%s: Failed to dump JSON request\n",
                remote_addr);
        }
        ast_verbose("<--- Received ARI message from %s --->\n%s\n",
            remote_addr, str);
        ast_json_free(str);
    }

    request = SCOPE_CALL_WITH_RESULT(-1, struct rest_request_msg *,
        parse_rest_request_msg, remote_addr, request_msg, &response, debug_app);

    if (!request || response.response_code != 200) {
        SCOPE_CALL(-1, send_rest_response, ari_ws_session,
            remote_addr, app_name, request, &response, debug_app);
        SCOPE_EXIT_RTN_VALUE(0, "%s: Done with message\n", remote_addr);
    }

    /*
     * We don't actually use the headers in the response
     * but we have to allocate it because ast_ari_invoke
     * and the resource handlers expect it.
     */
    response.headers = ast_str_create(80);
    if (!response.headers) {
        /* If we can't allocate a string, we can't respond to the client either. */
        SCOPE_EXIT_LOG_RTN_VALUE(-1, LOG_ERROR, "%s: Failed allocate headers string\n",
            remote_addr);
    }

    SCOPE_CALL(-1, ast_ari_invoke, NULL, ARI_INVOKE_SOURCE_WEBSOCKET,
        NULL, request->uri, request->method, request->query_strings,
        upgrade_headers, request->body, &response);

    ast_free(response.headers);

    if (response.no_response) {
        SCOPE_EXIT_RTN_VALUE(0, "No response needed\n");
    }

    SCOPE_CALL(-1, send_rest_response, ari_ws_session,
        remote_addr, app_name, request, &response, debug_app);

    SCOPE_EXIT_RTN_VALUE(0, "%s: Done with message\n", remote_addr);
}

References app_name(), ARI_INVOKE_SOURCE_WEBSOCKET, ast_ari_invoke(), ast_free, ast_json_dump_string_format(), ast_json_free(), AST_JSON_PRETTY, ast_str_create, ast_verbose(), ast_ari_response::fd, ast_ari_response::headers, LOG_ERROR, ast_ari_response::no_response, NULL, parse_rest_request_msg(), RAII_VAR, request(), request_destroy(), ast_ari_response::response_code, SCOPE_CALL, SCOPE_CALL_WITH_RESULT, SCOPE_ENTER, SCOPE_EXIT_LOG_RTN_VALUE, SCOPE_EXIT_RTN_VALUE, send_rest_response(), stasis_app_get_debug_by_name(), str, and TRACE_ATLEAST.

Referenced by websocket_established_cb().

parse_rest_request_msg()

static struct rest_request_msg * parse_rest_request_msg ( const char *  remote_addr, struct ast_json *  request_msg, struct ast_ari_response *  response, int  debug_app  )

static

Definition at line 73 of file ari_websocket_requests.c.

{
    struct rest_request_msg *request = NULL;
    RAII_VAR(char *, body, NULL, ast_free);
    enum ast_json_nvp_ast_vars_code nvp_code;
    char *query_string_start = NULL;
    SCOPE_ENTER(4, "%s: Parsing RESTRequest message\n", remote_addr);

    response->response_code = 200;
    response->response_text = "OK";

    if (!request_msg) {
        SET_RESPONSE_AND_EXIT(500,
            "Server error","No message to parse.",
            remote_addr, request, NULL);
    }

    request = ast_calloc(1, sizeof(*request));
    if (!request) {
        SET_RESPONSE_AND_EXIT(500,
            "Server error","Out of memory",
            remote_addr, request, NULL);
    }

    /* transaction_id is optional */
    request->transaction_id = ast_strdup(
        ast_json_string_get(ast_json_object_get(
            request_msg, "transaction_id")));

    /* request_id is optional */
    request->request_id = ast_strdup(
        ast_json_string_get(ast_json_object_get(
            request_msg, "request_id")));

    request->request_type = ast_strdup(
        ast_json_string_get(ast_json_object_get(request_msg, "type")));
    if (ast_strlen_zero(request->request_type)) {
        SET_RESPONSE_AND_EXIT(400,
            "Bad request","No 'type' property.",
            remote_addr, request, request_msg);
    }

    if (!ast_strings_equal(request->request_type, "RESTRequest")) {
        SET_RESPONSE_AND_EXIT(400,
            "Bad request","Unknown request type.",
            remote_addr, request, request_msg);
    }

    request->uri = ast_strdup(
        ast_json_string_get(ast_json_object_get(request_msg, "uri")));
    if (ast_strlen_zero(request->uri)) {
        SET_RESPONSE_AND_EXIT(400,
            "Bad request","Empty or missing 'uri' property.",
            remote_addr, request, request_msg);
    }
    if ((query_string_start = strchr(request->uri, '?')))
    {
        *query_string_start = '\0';
        query_string_start++;
        request->query_strings = ast_http_parse_post_form(
            query_string_start, strlen(query_string_start), "application/x-www-form-urlencoded");
    }

    request->method = ast_get_http_method_from_string(
        ast_json_string_get(ast_json_object_get(request_msg, "method")));
    if (request->method == AST_HTTP_UNKNOWN) {
        SET_RESPONSE_AND_EXIT(400,
            "Bad request","Unknown or missing 'method' property.",
            remote_addr, request, request_msg);
    }

    /* query_strings is optional */
    nvp_code = ast_json_nvp_array_to_ast_variables(
        ast_json_object_get(request_msg, "query_strings"),
        &request->query_strings);
    if (nvp_code != AST_JSON_NVP_AST_VARS_CODE_SUCCESS &&
        nvp_code != AST_JSON_NVP_AST_VARS_CODE_NO_INPUT) {
        SET_RESPONSE_AND_EXIT(400,
            "Bad request","Unable to parse 'query_strings' array.",
            remote_addr, request, request_msg);
    }

    request->body = ast_json_null();

    body = ast_strdup(ast_json_string_get(
        ast_json_object_get(request_msg, "message_body")));

    if (ast_strlen_zero(body)) {
        SCOPE_EXIT_RTN_VALUE(request,
            "%s: Done parsing RESTRequest message.\n", remote_addr);
    }

    /* content_type is optional */
    request->content_type = ast_strdup(
        ast_json_string_get(ast_json_object_get(request_msg, "content_type")));

    if (ast_strlen_zero(request->content_type)) {
        SET_RESPONSE_AND_EXIT(400,
            "Bad request","No 'content_type' for 'message_body'.",
            remote_addr, request, request_msg);
    }

    if (ast_strings_equal(request->content_type, "application/x-www-form-urlencoded")) {
        struct ast_variable *vars = ast_http_parse_post_form(body, strlen(body),
            request->content_type);
        if (!vars) {
            SET_RESPONSE_AND_EXIT(400,
                "Bad request","Unable to parse 'message_body' as 'application/x-www-form-urlencoded'.",
                remote_addr, request, request_msg);
        }
        ast_variable_list_append(&request->query_strings, vars);
    } else if (ast_strings_equal(request->content_type, "application/json")) {
        struct ast_json_error error;
        request->body = ast_json_load_buf(body, strlen(body), &error);
        if (!request->body) {
            SET_RESPONSE_AND_EXIT(400,
                "Bad request","Unable to parse 'message_body' as 'application/json'.",
                remote_addr, request, request_msg);
        }
    } else {
        SET_RESPONSE_AND_EXIT(400,
            "Bad request","Unknown content type.",
            remote_addr, request, request_msg);
    }

    if (TRACE_ATLEAST(3) || debug_app) {
        struct ast_variable *v = request->query_strings;
        for (; v; v = v->next) {
            ast_trace(-1, "Query string: %s=%s\n", v->name, v->value);
        }
    }

    SCOPE_EXIT_RTN_VALUE(request,
        "%s: Done parsing RESTRequest message.\n", remote_addr);
}

References ast_calloc, ast_free, ast_get_http_method_from_string(), ast_http_parse_post_form(), AST_HTTP_UNKNOWN, ast_json_load_buf(), ast_json_null(), ast_json_nvp_array_to_ast_variables(), AST_JSON_NVP_AST_VARS_CODE_NO_INPUT, AST_JSON_NVP_AST_VARS_CODE_SUCCESS, ast_json_object_get(), ast_json_string_get(), ast_strdup, ast_strings_equal(), ast_strlen_zero(), ast_trace, ast_variable_list_append, rest_request_msg::body, error(), ast_variable::name, ast_variable::next, NULL, RAII_VAR, request(), ast_ari_response::response_code, ast_ari_response::response_text, SCOPE_ENTER, SCOPE_EXIT_RTN_VALUE, SET_RESPONSE_AND_EXIT, TRACE_ATLEAST, and ast_variable::value.

Referenced by ari_websocket_process_request().

request_destroy()

static void request_destroy ( struct rest_request_msg *  request )

static

Definition at line 37 of file ari_websocket_requests.c.

{
    if (!request) {
        return;
    }

    ast_free(request->request_type);
    ast_free(request->transaction_id);
    ast_free(request->request_id);
    ast_free(request->uri);
    ast_free(request->content_type);
    ast_variables_destroy(request->query_strings);
    ast_json_unref(request->body);

    ast_free(request);
}

References ast_free, ast_json_unref(), ast_variables_destroy(), and request().

Referenced by ari_websocket_process_request().

send_rest_response()

static void send_rest_response ( struct ari_ws_session *  ari_ws_session, const char *  remote_addr, const char *  app_name, struct rest_request_msg *  request, struct ast_ari_response *  response, int  debug_app  )

static

Definition at line 211 of file ari_websocket_requests.c.

{
    struct ast_json *app_resp_json = NULL;
    char *message = NULL;
    SCOPE_ENTER(4, "%s: Sending REST response %d:%s for uri %s\n",
        remote_addr, response->response_code, response->response_text,
        request ? request->uri : "N/A");

    if (response->fd >= 0) {
        close(response->fd);
        response->response_code = 406;
        response->response_text = "Not Acceptable.  Use HTTP GET";
    } else if (response->message && !ast_json_is_null(response->message)) {
        message = ast_json_dump_string_format(response->message, AST_JSON_COMPACT);
        ast_json_unref(response->message);
    }

    app_resp_json = ast_json_pack(
        "{s:s, s:s*, s:s*, s:i, s:s, s:s, s:s*, s:s* }",
        "type", "RESTResponse",
        "transaction_id", request ? S_OR(request->transaction_id, "") : "",
        "request_id", request ? S_OR(request->request_id, "") : "",
        "status_code", response->response_code,
        "reason_phrase", response->response_text,
        "uri", request ? S_OR(request->uri, "") : "",
        "content_type", message ? "application/json" : NULL,
        "message_body", message);

    ast_json_free(message);
    if (!app_resp_json || ast_json_is_null(app_resp_json)) {
        SCOPE_EXIT_LOG_RTN(LOG_WARNING,
            "%s: Failed to pack JSON response for request %s\n",
            remote_addr, request ? request->uri : "N/A");
    }

    SCOPE_CALL(-1, ari_websocket_send_event, ari_ws_session,
        app_name, app_resp_json, debug_app);

    ast_json_unref(app_resp_json);

    SCOPE_EXIT("%s: Done.  response: %d : %s\n",
        remote_addr,
        response->response_code,
        response->response_text);
}

References app_name(), ari_websocket_send_event(), AST_JSON_COMPACT, ast_json_dump_string_format(), ast_json_free(), ast_json_is_null(), ast_json_pack(), ast_json_unref(), ast_ari_response::fd, LOG_WARNING, ast_ari_response::message, NULL, request(), ast_ari_response::response_code, ast_ari_response::response_text, S_OR, SCOPE_CALL, SCOPE_ENTER, SCOPE_EXIT, and SCOPE_EXIT_LOG_RTN.

Referenced by ari_websocket_process_request().
