ast_ari_transfer_message Struct Reference

Message published during an "ARI" transfer. More...

#include <stasis_channels.h>

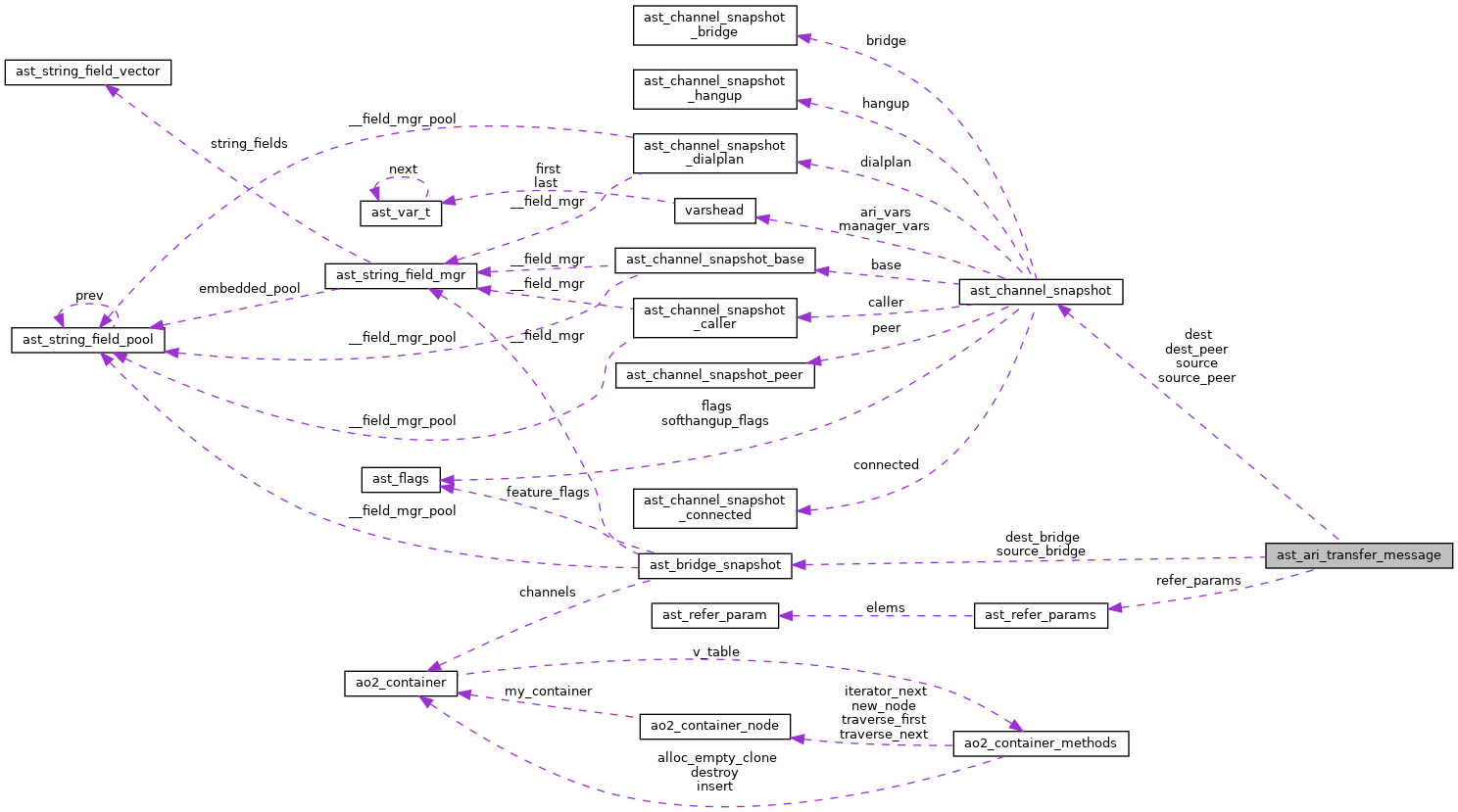

Collaboration diagram for ast_ari_transfer_message:

Data Fields
struct ast_channel_snapshot *	dest
struct ast_bridge_snapshot *	dest_bridge
struct ast_channel_snapshot *	dest_peer
char	destination [AST_MAX_EXTENSION]
char *	protocol_id
struct ast_refer_params *	refer_params
char *	referred_by
struct ast_channel_snapshot *	source
struct ast_bridge_snapshot *	source_bridge
struct ast_channel_snapshot *	source_peer
enum ast_control_transfer	state

Detailed Description

Message published during an "ARI" transfer.

Since

23

Definition at line 775 of file stasis_channels.h.

Field Documentation

dest

struct ast_channel_snapshot* dest

The identified destination channel.

Definition at line 791 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), ari_transfer_to_json(), and ast_ari_transfer_message_create().

dest_bridge

struct ast_bridge_snapshot* dest_bridge

The bridge associated with the channel.

Definition at line 793 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), and ari_transfer_to_json().

dest_peer

struct ast_channel_snapshot* dest_peer

The peer of the destination channel.

Definition at line 795 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), and ari_transfer_to_json().

destination

char destination[AST_MAX_EXTENSION]

Destination extension

Definition at line 787 of file stasis_channels.h.

Referenced by ari_transfer_to_json(), and ast_ari_transfer_message_create().

protocol_id

char* protocol_id

Information for attended transfers

Definition at line 789 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), ari_transfer_to_json(), and ast_ari_transfer_message_create().

refer_params

struct ast_refer_params* refer_params

An array of protocol specific params, e.g. from/to information

Definition at line 797 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), ari_transfer_to_json(), and ast_ari_transfer_message_create().

referred_by

char* referred_by

Referer identity

Definition at line 783 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), and ast_ari_transfer_message_create().

source

struct ast_channel_snapshot* source

The channel receiving the transfer request

Definition at line 777 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), ari_transfer_to_json(), and ast_ari_transfer_message_create().

source_bridge

struct ast_bridge_snapshot* source_bridge

The bridge associated with the source channel

Definition at line 779 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), and ari_transfer_to_json().

source_peer

struct ast_channel_snapshot* source_peer

The peer channel

Definition at line 781 of file stasis_channels.h.

Referenced by ari_transfer_dtor(), and ari_transfer_to_json().

state

enum ast_control_transfer state

The current state of the transfer.

Definition at line 799 of file stasis_channels.h.

Referenced by ari_transfer_to_json(), and ast_ari_transfer_message_create().

---

The documentation for this struct was generated from the following file:

• stasis_channels.h
